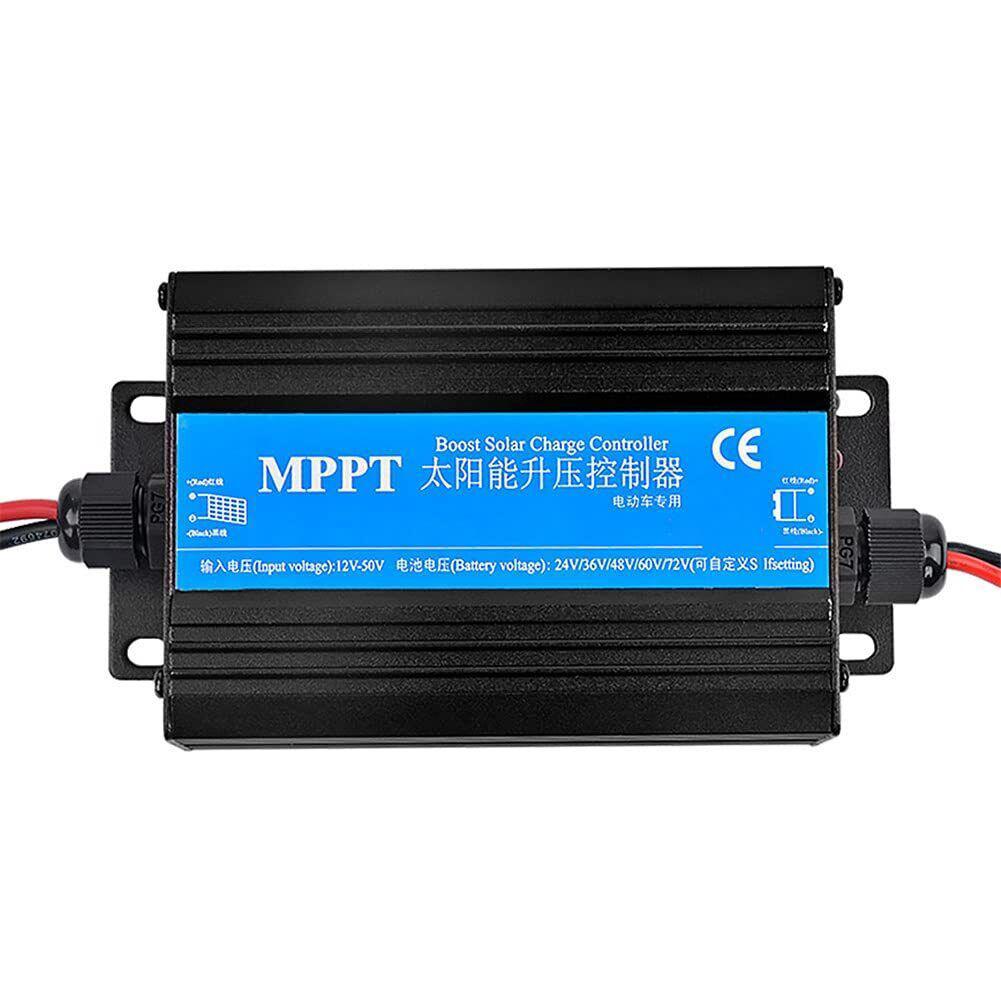

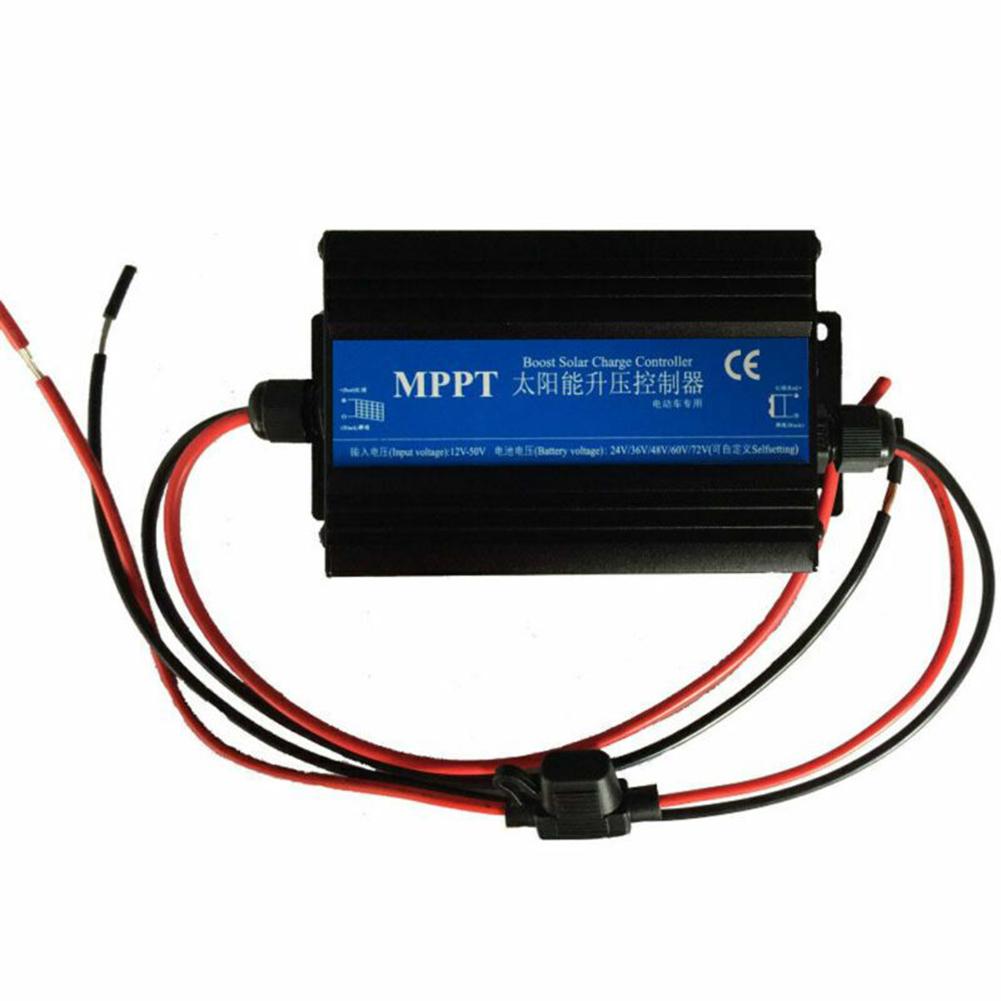

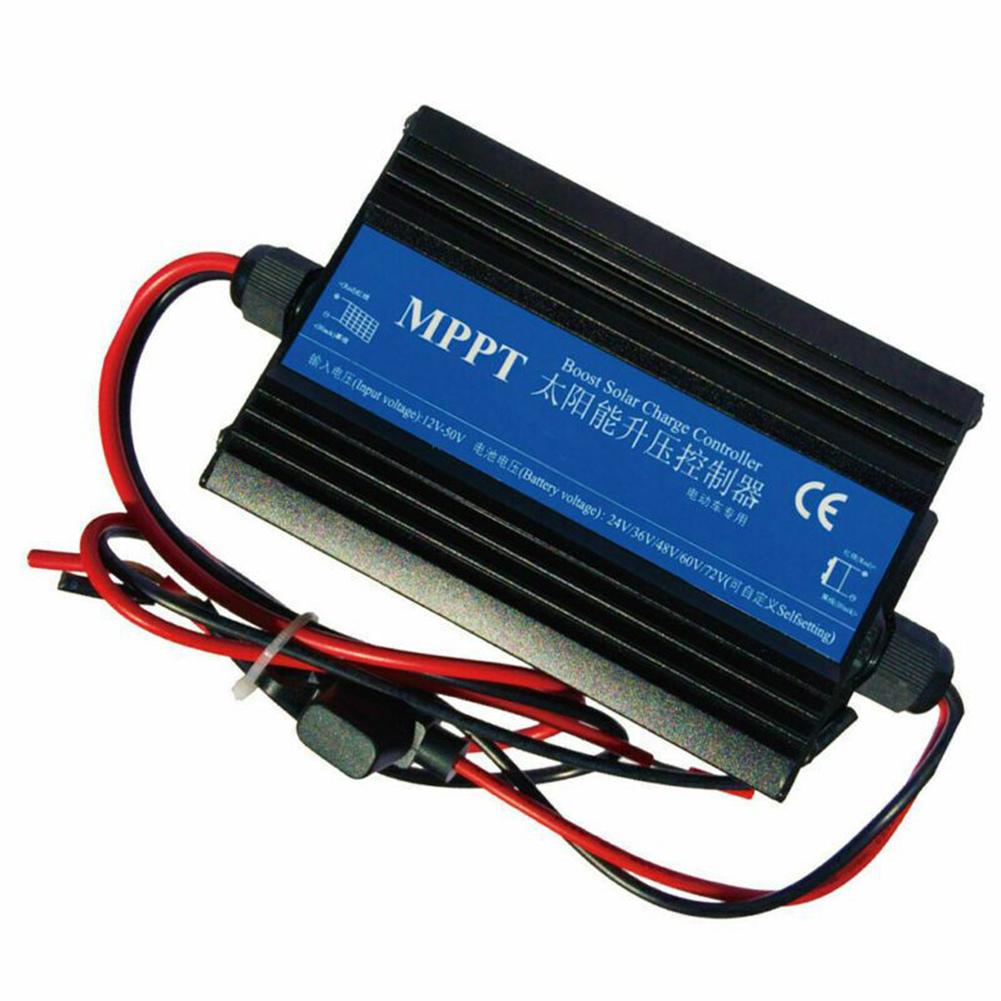

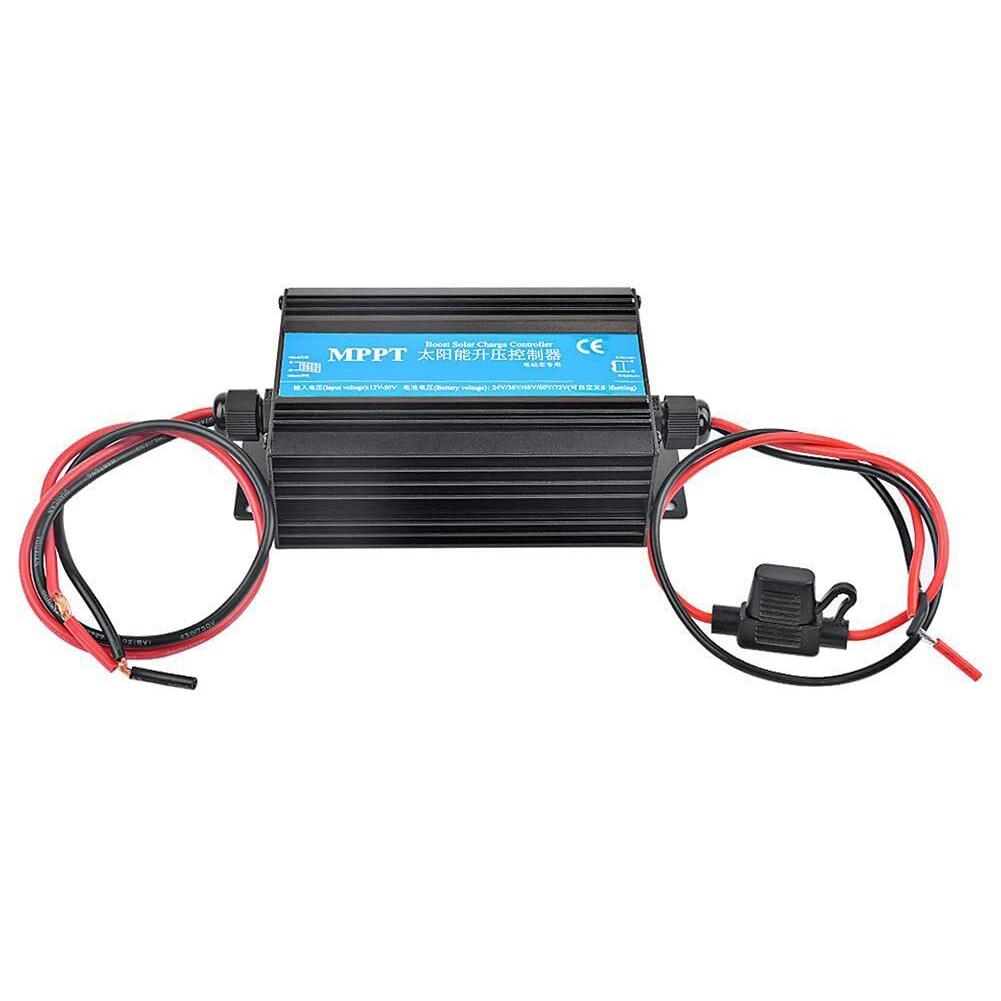

24-72V Controller Black CTK300-II MPPT Solar Charge

Feature： *Brand new and high quality *MPPT charging methods for high-performance boosters. *The system uses solar panel power supply, reduce the power consumption of the battery. *The LED status indicator. *4 LED Digital Tube Current Time Display Charging current, battery voltage and solar energy input voltage, running status be clear at a glance. *Comprehensive overcharge, recoil, return and short circuit protection. *Built-in parental control switch, after locking, the external battery parameters can not be adjusted to prevent abuse due to charging button error. Parental control does not affect the digital display and voltage detection. *Optional battery voltage for 24 V.36 V.48 V.60 V.72 V or adjustment of the battery charging voltage as desired (user adjustment via the internal switch button).

Details： *Material:pvc *Color:black *Size:(as shown in the picture) *Model: CTK300-II *Power: < = 300W *Solar panel input voltage range: 12V to 50V (solar panel voltage should be lower than the battery voltage) *MPPT Voltage range: 15V to 45V *Opposite connection protection: Fuse protection *Overvoltage: 28.8 V (24 V) × 43.2 V (36 V), 57.6 V (48 V) 72.0 (60 V), 86.4 V (72 V), user-free setting

Package Contents: 1 * Solar Booster Controller

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.*
