Features:
* Strict quality control standards for manufacturing and testing.
* Stable performance and high reliability.
* DC motor small motor small fan smart lock motor brushless DC motor motor.
* Suitable for DIY fans or electronic products, small current starting motor, suitable for DIY solar products.
Specifications:

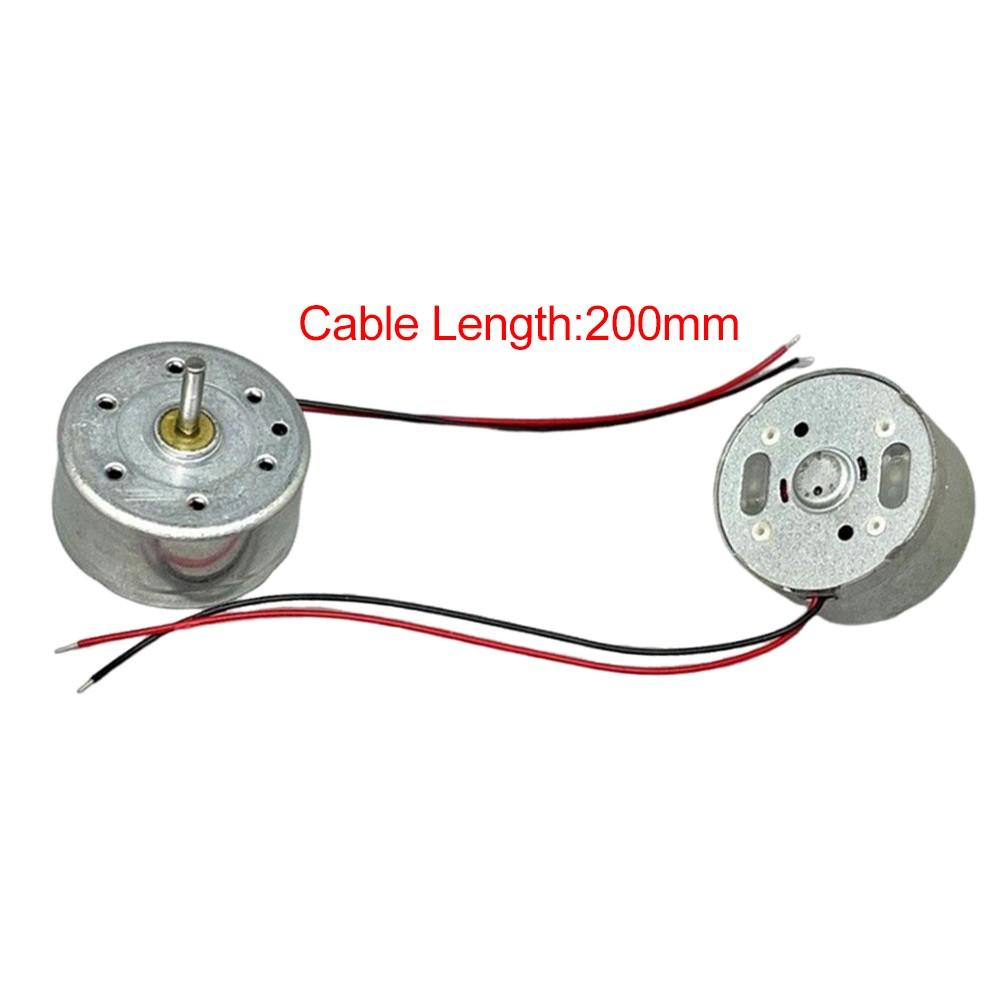

Part name: Motor
Model: RF-300 / RK-300CA / RF-300CA-12350
Wire length (optional): 45mm, 75mm, 120mm, 150mm, 200mm, 300mm
Material: Metal
Size: 24.35 mm
Height: 12.4 mm
Shaft diameter: 2 mm
Shaft length: 10 mm
Step: Step diameter 6.4 mm, step height 1 mm
Voltage: 1.5-6V
Weight: about 20g
Applicable voltage range: 1.5-6 V DC
The no-load speed measured at 3V is 4967 rpm, and the no-load current is 27 mA;
The no-load speed measured at 3.7V is 6311 rpm, and the no-load current is 30 mA;
The no-load speed measured at 5V is 8540 rpm, and the no-load current is 36 mA;
The no-load speed measured at 6V is 10287 rpm, no-load current 42 mA;
Package Contents:
1 x Motor
Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
