Product Name
KAWADA CARTEN 239mm M210 FWD
Brand Introduction
KAWADA is a well-known Japanese manufacturer of radio-controlled (RC) models, renowned for producing high-quality RC models and parts that have gained popularity worldwide due to their exceptional performance and quality.
Product Description

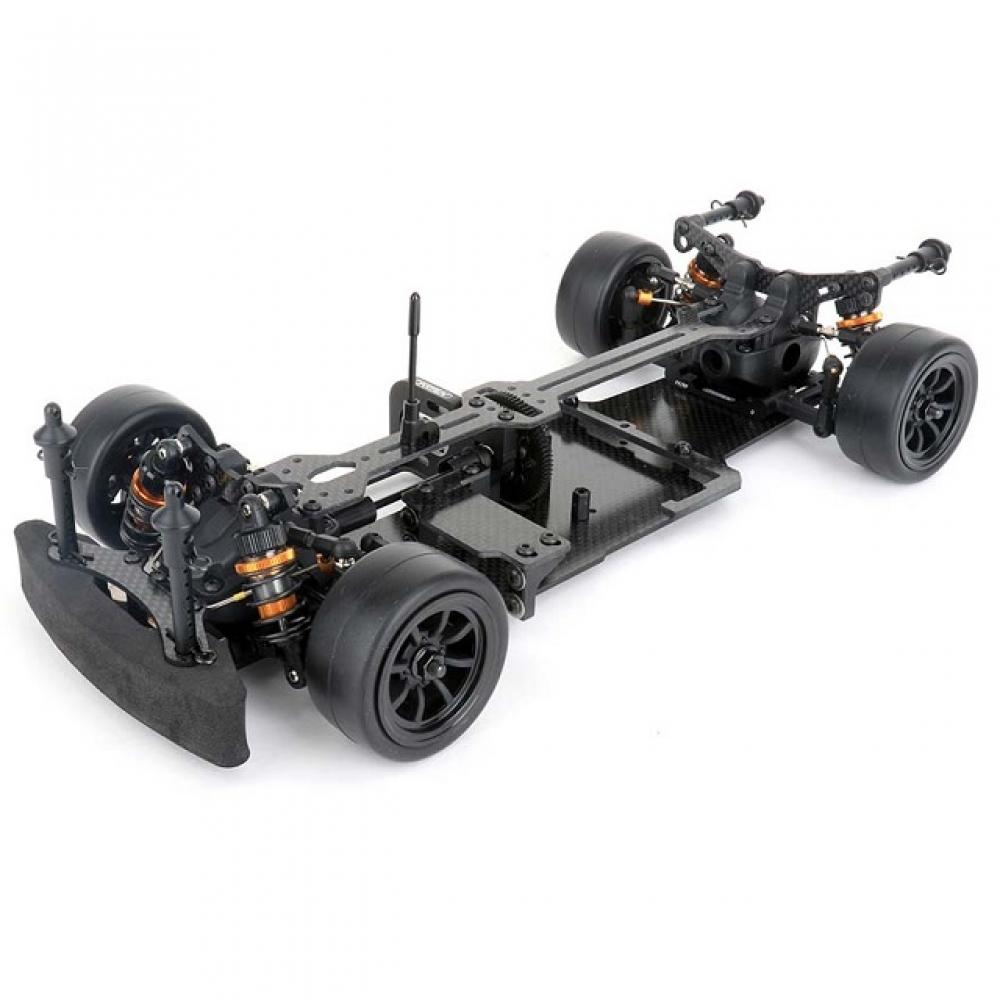

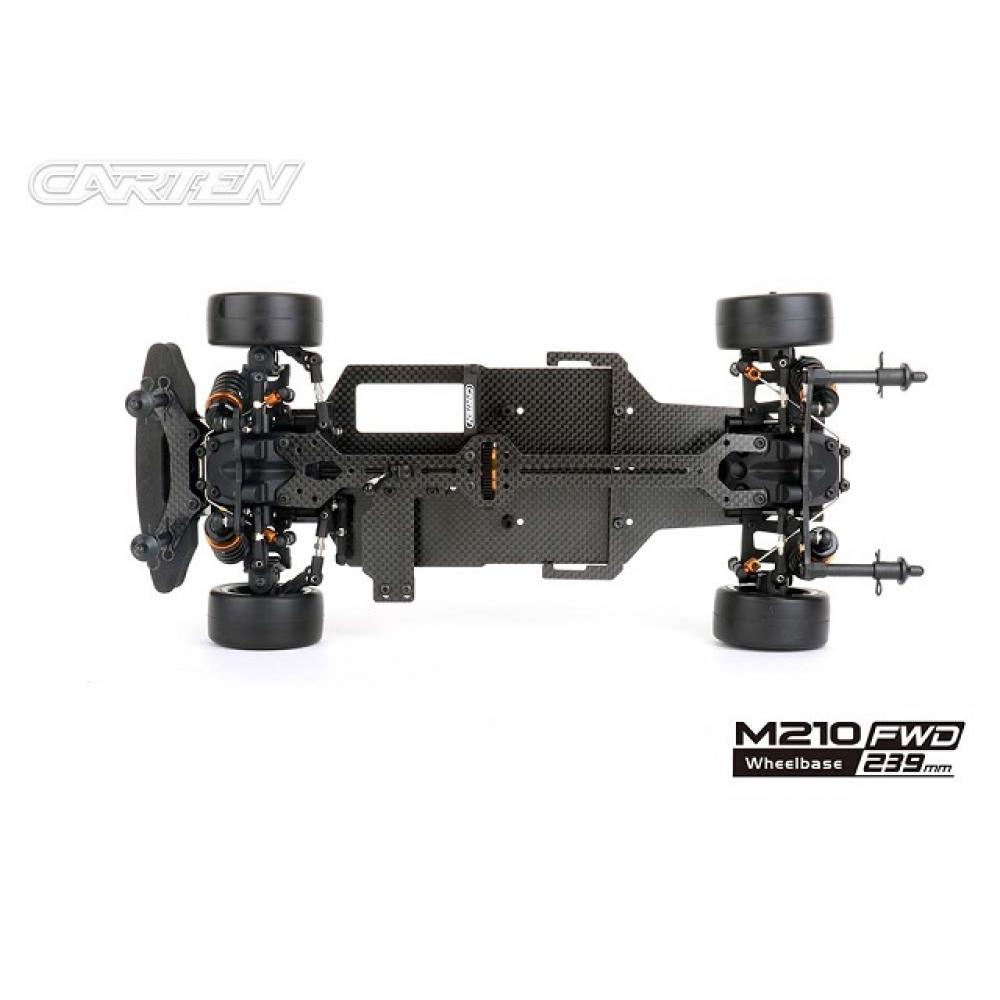

Introducing the much-awaited FWD version of the M210 series mini chassis from CARTEN, which has been highly praised for its excellent running capability in standard kit form! The 'M210FWD' features a shaft-driven FWD mini chassis that has not been seen before. Enjoy the sharp throttle response unique to shaft drive! There are three lineup variations with different wheelbases, allowing you to mount your preferred mini body.
Standard Kit Aluminum Parts
- Aluminum Steering Mount (NBA317)
- Aluminum Pivot Block (NBA316, NBA314, NBA315)
- Aluminum Oil Damper (NBA229)
- Front and Rear Stabilizers (NBA311)
- Aluminum Hex Hub (NBA213)
Specifications
- 1/10 Scale (Mini)
- Overall Width: 166mm
- Wheelbase: 239mm
- Differential Type: Gear Differential
- Drive Type: Shaft Drive FWD
- Suspension Type: Front and Rear Double Wishbone
- Full Ball Bearing included
- Motor: 540 Type (Sold separately)
- Secondary Reduction Ratio: 2.47 (42/17)
- Standard Gear Ratio: 4.56:1 (48 pitch 72T spur & 39T pinion gear included)
How to Use
- Necessary items for operation: 2-channel Propo set (transmitter, receiver, ESC, servo), 540 size motor, operation battery (1S size or short size Li-Po with maximum dimensions: 96×47×26mm), operation body
Precautions
- This product is a kit that requires assembly. Additional necessary parts must be purchased separately. The performance of the product may vary depending on the accuracy of the assembly.
