Kawada M210r Plus Chassis Kit [m2102]

Product Name: KAWADA M210R PLUS Chassis Kit [M2102]

[Brand Introduction]

KAWADA is a premium RC model manufacturing brand from Japan, recognized worldwide for its unique technology and innovative design. With a long history in the automotive model kit sector, the brand has earned the trust of RC enthusiasts through its high-quality products.

[Product Description]

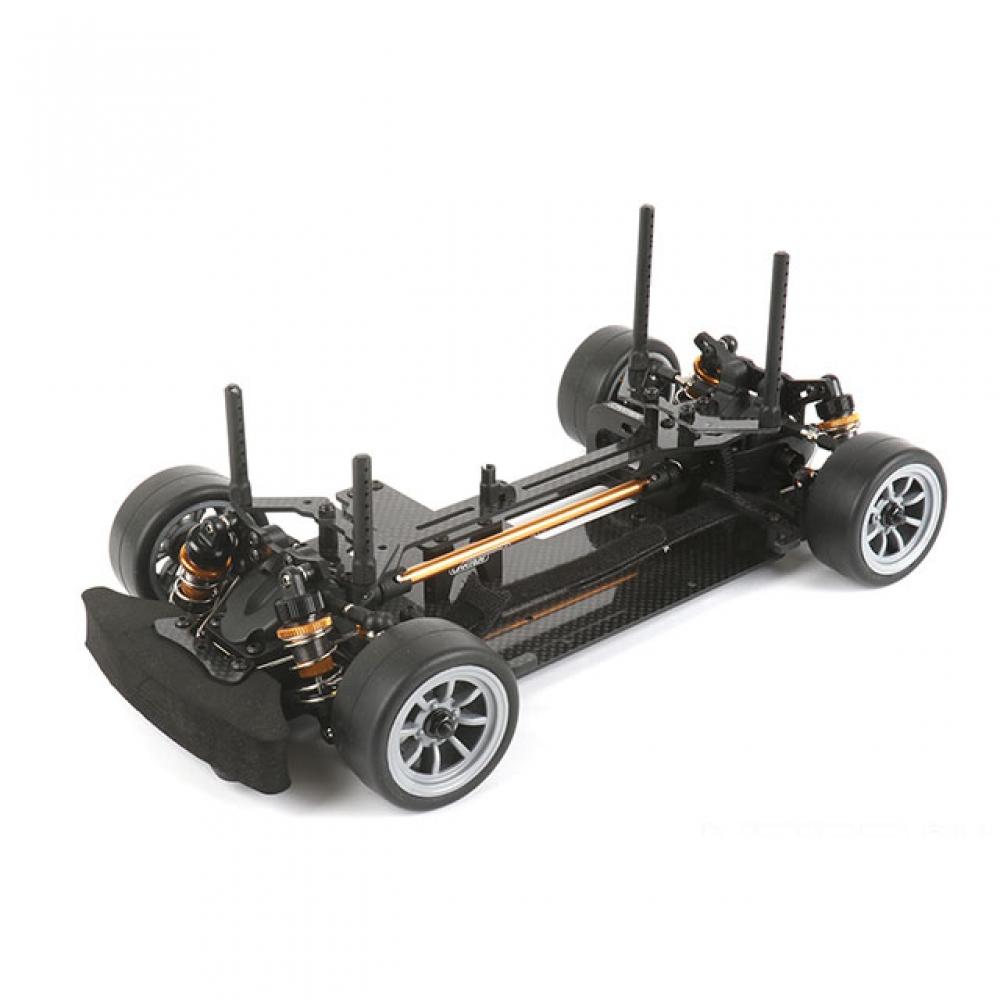

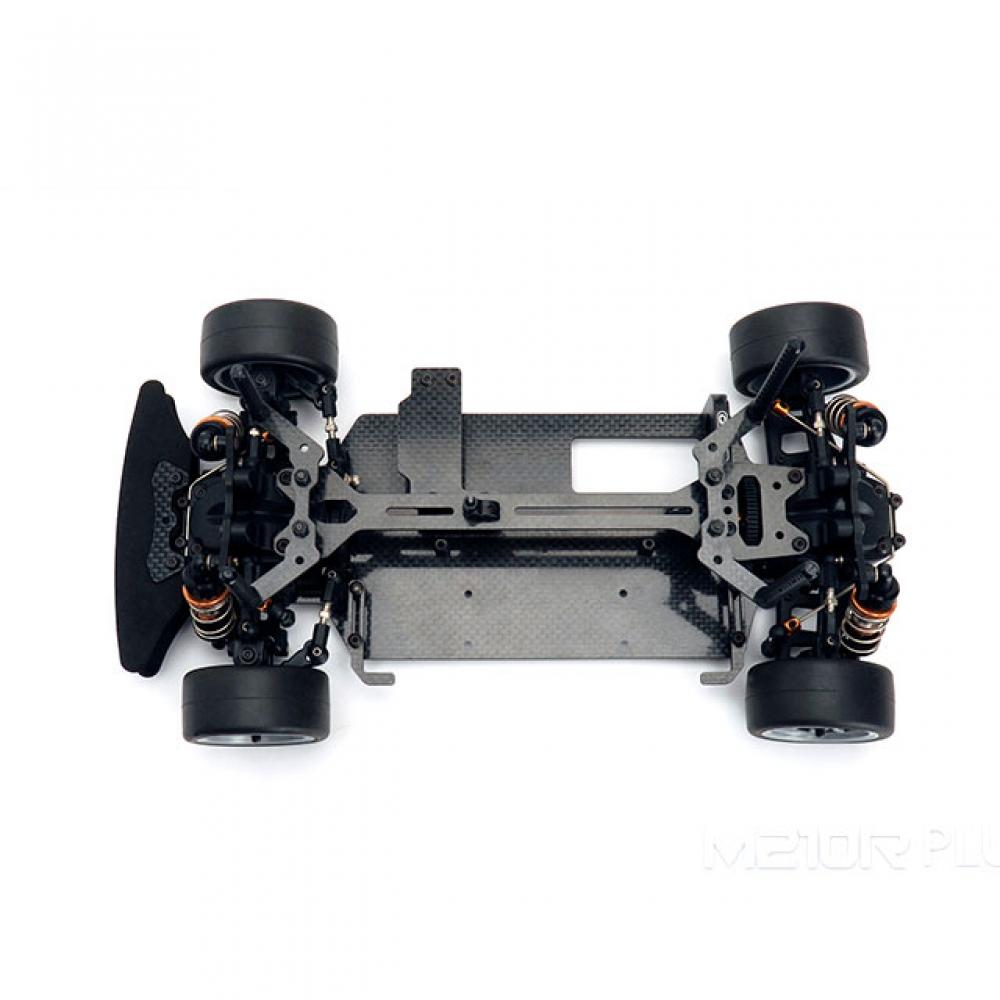

The KAWADA M210R PLUS Chassis Kit is the top-tier model loaded with optional parts of the CARTEN M210, a mini chassis model with a shaft drive 4WD system. Typically, there are additional costs when switching from the M210 standard kit to the M210R PLUS, but this product offers great value for money.

[Specifications]

- Model Number: M2102

- Overall Width: 166mm

- Wheelbase: 208~210mm

- Running Weight: Approximately 1.2kg (varies depending on the used mechanisms)

- Differential Type: Front - Solid Axle, Rear - Gear Differential

- Drive Type: Shaft Drive 4WD

- Suspension Type: Front and Rear Double Wishbone

- Full Ball Bearings

- Motor: 540 type (sold separately)

- Secondary Reduction Ratio: 2.47

- Kit Standard Gear Ratio: 5.737:1 (includes 48 pitch 72T spur & 31T pinion gear)

[How to Use]

To assemble this chassis kit, the following items are required:

- 2-channel pro set (transmitter, receiver, ESC, servo)

- 540 size motor

- Running battery (full size Li-Po, short Li-Po, Ni-MH straight pack battery)

- Running body (for M chassis with 210mm wheelbase)

[Precautions]

- Required tools for assembly: Hex wrench (1.5mm, 2mm, 2.5mm), Hobby wrench (5.5mm, 7mm box wrench), Nippers, Radio pliers, Cutting knife, Caliper, Instant glue, Screw-locking agent, Cleaner spray.

- Please ensure to read the assembly instructions thoroughly and adhere to safety regulations before usage.

[Size Chart]

Model Name | Overall Width | Wheelbase | Maximum Weight

-----------|---------------|------------|---------------

M210 | 166mm | 208mm | Approximately 1.2kg

M210R | 166mm | 208mm | Approximately 1.2kg

M210R Plus | 166mm | 208~210mm | Approximately 1.2kg

To request a return or exchange, please note that it is mandatory to provide a video of the unpacking of the package.
